Management of polytraumatized patient in Emilia Romagna. Data analysis of nontrauma center Hub Em. Dept

Riccardo Squerzanti1, Maurizio Giacometti1, Serena Scarabottini2, Francesca Mori2, Lucio Brugioni3

1. Pronto Soccorso e Medicina d’Urgenza, Arcispedale Sant’Anna, Ferrara
2. Scuola di Specialità in medicina d’Emergenza ed Urgenza, Università degli Studi di Modena e Reggio Emilia
3. Medicina Interna ed Area Critica, Azienda Ospedaliero Universitaria di Modena


Trauma still has a great impact in term of morbidity and mortality all over the world. In Emilia Romagna, a region of the north of Italy, the Integrated System of Assistance to Trauma (SIAT) was created to ensure the best management of prehospital and early in-hospital trauma patient.

Materials and Methods
We reporte and discuss the results of an experimental study done in Emergency Department of Ferrara; datas refer to management of prehospital and early in-hospital trauma patient in the biennium 2015-2016.

Datas show an increase in cases handled in the hub center instead of in the spoke ones; anyway there was an increasing in centralizing patients in the regional Hub Trauma center.
Trauma Team was correctly activated, with an increasing trend. In addition, raising percentage of admission in ICU was associated with the raising percentage of patients treated in emergency medicine ward.

This article allows us to reflect and discuss about prehospital and in hospital polytraumatized patient path. Thanks to this newborn protocol of centralisation, traumatic patients were uniformly managed in the Western Emilia Romagna SIAT; trauma had a multidisciplinary approach and more appropriate admission. This resulted in optimizing the whole process from the income to the outcome of the patient. Moreover, the hospital of the study showed to be ready to cover the amount of trauma, except for those patients who needed to an hyperspecialistic approach.


Trauma, Hub, Spoke, politraumatized patient, Trauma Integrated System of Assistance to Trauma model (SIAT).


Reality of trauma

Traumatic pathology is the third cause of death in Western world, the first one among the population between 18 and 40 YO. 5 millions of deaths per year all over the world and twice as many cases of injury-related disability. In Italy deaths per year for trauma are 25.500, first of all due to car accident, than domestic and workplace ones.
The role of scientific research is central to improve such statistics and optimise pre-hospital and in hospital medical care of traumatic patient.

Letterature reports the temporal evolution of mortality for trauma as a curve with a trimodal distribution10:

  • Immediate deaths, few minutes after injury
  • Early deaths, few hours after injury;
  • Late deaths, days or weeks after injury.

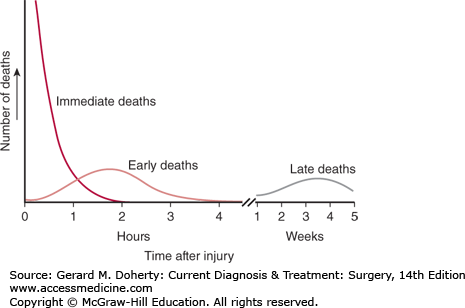

Figure 1. Trimodal distribution of mortality in traumatic patient

According to that distribution, the first mortality peak is due to injuries so serious to cause rapidly the exitus: the EMS can’t do anything to avoid the mortality.
The second peak refers to the so-called “golden hour” of trauma, during which it is possible to take effective action: thanks to a rapid evaluation and treatment of EMS it is possible to influence significantly the mortality due to trauma1.
The third peak depends to the events that occur weeks after trauma and it’s related on what happened in the initial management of trauma, including the golden hour.

Application of integrated system of assistance to major trauma (siat) in Emilia Romagna

In July 2004 the Senior Health Council, based on indication of the Health Department, produce a document to present the new management system of polytrauma7,21.
This news system is based on the immediate recognition of the most critical patients and their transport in hospital with resources and multidisciplinary team specialized in trauma. The document defined the conditions of traumatic patients to let them receive an appropriate prehospital and in-hospital assistance. According to that conditions in Emilia Romagna was defined the Trauma Integrated System of Assistance to Trauma model (SIAT)21.
SIAT is a network where all the acute care hospitals existing in the local territory with specificated elementary requirements (Spoke centers) rotate around a reference centre, able to provide an adequate assistance for all types of major trauma patients from the territory (Hub Center).
The characteristics of the model are the functional integration between territorial emergency service and hospital network and the “centralisation principle”, that allows to concentrate severe conditions in few hospitals with adequate resources.
SIAT model has the “Primary Centralization” as a mean approach: to transport immediately the patient to the final place of care. In case of impossibility to control and treat in the pre-hospital setting the respiratory and/or cardiocirculatory instability, patient should be transported to the nearest network hospital, regardless of the type of injury; in a second time, if necessary, patient can be transferred to superior level structure (trauma center) once vital function are stable (secondary centralization)21.

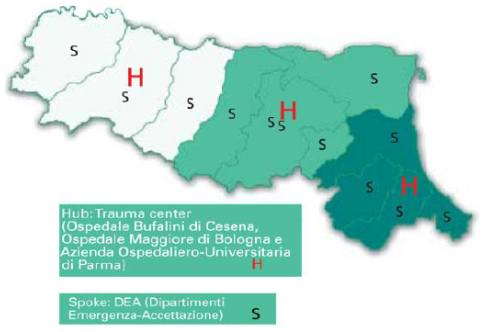

Emilia Romagna is an italian region and it’s divided in three independent SIAT, each one with an HUB center:

  • SIAT Emilia Occidentale (Parma, Piacenza, Reggio Emilia) – Azienda Ospedaliero-Universitaria di Parma;
  • SIAT Emilia Orientale (Bologna, Ferrara, Modena) – Azienda USL di Bologna, Ospedale Maggiore;
  • SIAT Romagna (Rimini, Forlì-Cesena, Ravenna) – Azienda USL di Cesena, Ospedale Maurizio Bufalini.

In every SIAT it is possible to distinguish three types of hospitals:

  • High specialization Trauma Center (Centro Traumi ad alta Specializzazione, CTS): is an HUB center for all hospitals in the area; it includes the highest specializations for polytraumatic patients.
  • Area Trauma Center (Centro Traumi di Zona, CTZ): has different specializations to treat some cases of major trauma; it is a SPOKE center for the CTS but a HUB center for the PST of the area.
  • Emergency Room for Trauma (Presidi di pronto Soccorso per traumi, PST): every major hospital where trauma patients should not arrive unless for special cases.

HUB center is the reference and coordination point of the territorial emergency network, thanks to relations with Spoke centers and shared protocols for treatment and centralization of complex cases.

SPOKE center is used to diagnostic and globally assist patients during different phases of disease and their eventually centralization according to shared protocols to HUB center.

The purposes of this service network are:

  • concentration and raise of complex cases to improve clinical competence and quality service
  • communication and collaboration among territorial centers
  • creation of common and practical policies
  • decrease of service costs

The expected effects for the application of SIAT model are:

  • Decrease of hospital mortality
  • Early recovery of patients
  • Increasing quality of service

Materials and methods

Data analysis in Ferrara emergency department

In the EMD of Ferrara (CTZ of West Emilia SIAT) were analyzed data of severe trauma (according to corporate protocol) both in prehospital and in hospital management in 2015-2016.

Extrapolated data of pre-hospital management from trauma register had triage code Sierra Charlie 1 Red (car accident trauma), ISS>15, re-entry code 2 or 3 (probability or presence of severe alteration of almost one vital function). There were considered site of medical intervention, destination hospital, potential centralization, mode of transport.

In-hospital cohort of patients was created using flows of information (SDO) of traumatic red codes in ER of Ferrara Arcispedale Sant’Anna. The study included patients with thoracic trauma, abdominal trauma, injuries, self-injury, burns, third-party violence, contusion, head trauma. There were considered admission code, activation of trauma team, admission department with eventual transfer to HUB center.

Management of polytraumatic patients was also examined, especially for emergency medicine department and ICU19,21.


Pre Hospital results

In 2015 according to Est Emilia Trauma Register there were 389 code 2, 75% (292 patients) were treated in Ferrara Sant’Anna Hospital ER, 21% (81 patients) in Spoke centers, 4% (16 patients) were immediately centralized to Hub center of Est Emilia, half of them by helicopter27,28.

In 2016 the total number of patient with code 2 was 468: 81% (380 patients) was treated in Ferrara, 16% in Spoke centers, 3% was centralized to Bologna. 55% of patients rescued by helicopter were carried to Ferrara hospital, the remaining part to Bologna.

In 2015 there were 34 patients with code 3; 94% was managed of provincial Hub center, with a centralization of 50% of patients; only 6% were centralized to Bologna. For those patients who required helicopter 72% arrived in Ferrara Hospital.

In 2016 out of a total of 37 patient with code 3, 81% was managed in Ferrara hospital, 16% of them was centralized in Bologna and 3% managed in Spoke hospitals.

In Hospital study: results

In 2015 in the ER there where 256 patients with “traumatic red code”. Some demographic datas: mean age 54 yo, 61% male (157 patients). Activation of trauma team according to hospital protocol. In half of cases (51%) the trauma leader of prehospital rescue or the ER doctor did not activated the protocol.
In 2016 flows of information registered 232 patients with “traumatic red code”; mean age 55 yo, 66% male. in 50% of cases was activated trauma team protocol.

Also post-ER discharge course of treatment was evaluated.

In 2015 out of total of 256 traumatic red code patients, 62% was discharged, admitted in ER with red code, 35% with yellow code, 3% with green code. 42% was admitted in Emergency medicine Department, 22% in ICU, 11% in orthopedic ward, 6% in surgical emergency unit, 5% in neurosurgery, 4% in pediatric surgery, 1% in internal medicine ward. 8 patients died in ER, 2 of them during the transport. 4 patients were discharged with green code. Only 2 patients were transferred to other specialized structures (Burn center of Cesena, cardiac surgery of Bologna).

Same data were analyzed in 2016: 232 patients in Ferrara ER were admitted with red traumatic code. 54% discharged with red code, 42% with yellow code and 4% with green code.

36% of them were admitted in emergency medicine ward, 17% in ICU, 13% in orthopedic ward, 12% in surgical emergency unit. 1 patient transferred to Burn Center, 8 died and 13 discharged with green code.

Patients in Emergency Medicine and Intensive Care Unit (ICU)

In 2015 there were 108 patients admitted in Emergency Medicine ward, 88 patients discharged and 19 transferred; only one patient died.

In 2016 out of total of 85 patients, 77% was directly discharged from emergency medicine, 21% transferred to other ward; 2 patients died during the recovery.

Patients admitted in ICU from ER in 2015 were 57, 6 died during the recovery, 1 transferred in other hospital (transplant surgery ward) and 88% were transferred in other wards (4 in emergency medicine). In 2016 there were 44 patients recovered in ICU, 24% of them died during the recovery, 76% transferred in other units (6% in emergency medicine ward).

Discussion and conclusion

Trauma is a reality in continuous evolution. During years we assisted to a significant and progressive improvement of trauma approach and management from pre-hospital phases, passing by ER stabilization phase, until the management in hospital departments.

However still today we can improve preventable deaths, by deploying resources.

In Ferrara reality as provincial Hub hospital – high speciality Spoke hospital in SIAT Est Emilia, analysis of data about severe trauma in biennium 2015/2016 shows that thanks to centralization protocol patients were uniformly treated and managed; an increasing number of patients were treated in the provincial hub hospital of Ferrara, reducing the number of patients that arrived in spoke hospitals. However in the same period there was and increasing number of patient primarily centralized to regional Hub of Bologna especially by helicopter, not only for those complexity.

The correct activation of Trauma Team, according to protocol, with an incrementing trend in last years allows best multidisciplinary management of trauma and admission in appropriate units for the best care of polytraumatized patient. The increasing percentage of ICU admission is now consistent with regional datas. The hospital under study can sustain quantitatively and qualitatively the numbers of provincial trauma, except for those patients who required a super specialized approach21.

This study allowed us to elaborate a subsequent article in which we take in exam the management of trauma in the regional Hub hospital of Bologna24.


  1. ATLS guidelines
  2. Procedura aziendale P-206-AZ, “La golden hour del politrauma” percorso di gestione del paziente politraumatizzato dalla fase del soccorso al ricovero nella provinciale di Ferrara p 29
  3. Neri, Butcher, Zsolt et al. – The definition of politrauma: the need for international consensus. Injury, vol. 40, Suppl 4, November 2009:12-22
  4. Peden M, McGee K, Sharma G. The injury chart book: a graphical overview of the global burden of injuries. Geneva, World Health Organization, 2002.
  5. W Sathiyasekaran – Population- based color study of injury- Injury vol.27, no.10 1996:695-698
  6. ISTAT cause di morte anno 2007
  7. Registro regionale traumi gravi RRTG – Report dati relativi anno 2009 – Trauma Link – Servizio Sanitario Regionale Emilia Romagna
  8. Tien, Chu, Brenneman – Causes of death following multiple trauma – Current Orthopaedics (2004) 18, 304-310
  9. Gebhard, Huber-Lang, Langerbecks – Polytrauma – pathophysiology and management principles. Arch Surg (2008) 393:825-831
  10. Chiara, Cimbanassi, Pitidis – Preventable trauma death: from panel review to population based studies – World J. of Emergency Surgery – 2006 – 1:12
  11. Sampalis, Boukas, Stella – Preventable Death Evaluation of the Appropriateness of the On-Site Trauma Care Provided by Urgences-Sante Physicians; The Journal of Trauma: Injury, Infection, and Critical Care – Volume 39(6), December 1995, pp 1029-1035
  12. Chiara, Scott, Cimbanassi, Marini – Trauma deaths in an Italian urban area: an audit of pre-hospital and in-hospital trauma care – Injury Int. J. Care Injured 33 (2002) 553-562
  13. Pamerneckas, Macas, Vaitkaitis – Golden hour – early postinjury period – MEDICINA (2003) Vol. 39, No.9:845-850
  14. Mackenzie CF, Shin B, Cowley RA – Two-year mortality in 760 patients transported by helicopter direct from the road accident scene. Am Surgeon. 1979; 45:101–108.
  15. Newgard, Schmicker, Hedges, et al, – Emergency Medical Services Intervals and Survivals in trauma: Assessment of the “golden Hour” in a Northamerican prospective court – Ann Em Med 55, No 3: march 2010: 235-246
  16. Trunkey DD, What’s wrong with trauma care? Bull Am Coll Surg 1990;75:10-5
  17. Mullins, Veum-Store, Trunkey –Outcome of hospitalizated injured patients after institution of a trauma system in an urban area – JAMA, june 22/29, 1994 – Vol. 271, no 24:1919-24
  18. Sampalis, Denis, Frechette- Direct Transport to Tertiary Trauma Centers versus Transfer from Lower Level Facilities: Impact on Mortality and Morbidity among Patients with Major Trauma –The Journal of Trauma: Injury, Infection, and Critical Care Volume 43 (2), agosto 1997, 43(2), pp 288-296
  19. Atto di intesa tra Stato e Regioni di approvazione delle Linee Guida sul sistema di emergenza sanitaria in applicazione del PR 27 marzo 1992, U. n. 114 del 17 maggio 1996, Serie Generale Repubblica Italiana. Ministero Sanità
  20. Vestrup JA. Interinstitutional transfers to a trauma center. Am J Surg 1990; 159:462-465
  21. Delibera di giunta – 2002/1267 approvato il 22/7/2002: piano sanitario regionale 1999/2001 – approvazione delle linee guida per l’organizzazione delle aree di attività di livello regionale secondo modello Hub and Spoke
  22. Ricciardelli – La continuita dell’assistenza nel DEA dal territorio all’ospedale – IV CONGRESSO NAZIONALE SIMEU – Genova 19-22 maggio 2004 pp1-10
  23. D. Trunkey – Trauma Center and trauma systems –  JAMA 2003, vol 289, No 12:1566-7
  24. Registro Regionali traumi gravi report
  25. Chiara, Cimbanassi, Fava – La rete organizzativa per la gestione del trauma in Italia –Emergency Care Journal, 2005, 1:36-42.
  26. Agenzia di sanità pubblica Regione Lazio “Criteri clinico-organizzativi per il trasferimento del paziente critico nella rete dell’emergenza – Linee guida per gli operatori”, 2002
  27. Delibera dell’AOSP di Ferrara n° 157 del 19/05/2010: “La gestione del politrauma in ambito extra-ospedaliero” tra Azienda USL di Ferrara e Azienda Ospedaliero Universitaria di Ferrara
  28. Delibera dell’AUSL di Ferrara n° 289 del 06/07/2010: “La gestione del politrauma in ambito extra-ospedaliero” tra Azienda USL di Ferrara e Azienda Ospedaliero Universitaria di Ferrara.
